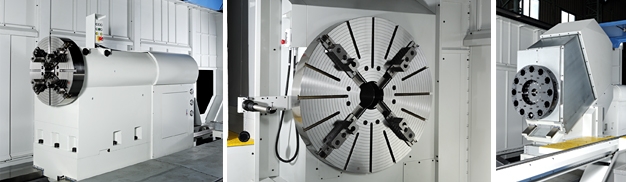

| MODEL |
|
S80 CY |
S100 CY |
| CAPACITY |
|
|
|
| Center Height |
mm(in) |
1065 (41.92) |
1300 (51.18") |
| Swing Over Bed |
mm(in) |
Ø2000(78.74") |
- |
| Swing Over Cross Slide |
mm(in) |
Ø1550(61.02") |
Ø1950(76.77") |
| Distance Between Center |
mm(in) |
2000(78.84")~12000(472.44") |
2000(78.84")~12000(472.44") over |
| HEADSTOCK |
|
|
|
| Spindle Nose |
|
A2-15 (OPTA2-20.A2-28) |
A2-15 (OPTA2-20.A2-28) |
| Spindle Bore |
mm(in) |
Ø230(9.05") (OPT: 360(14.1"), 410(16.1),535(21") |
| Spindle Motor |
Kw(hp) |
37/45kw(50/60HP) (opt. 60/75kw(80/100HP) / 100kw (130HP) |
| TURRET |
|
|
|
| Turret Type |
|
Hydraulic / Servo |
| No of Tool Station |
|
12 or 4 |
| Tool Shank Cross Section |
mm(in) |
□ 40 (1.6") or □ 50 (2") |
| TRAVEL |
|
|
|
| Travel X axis |
mm(in) |
1000(39.37") |
1200(47.24") |
| Travel Z axis |
mm(in) |
2000(78.84")~12000(472.44") over |
| C AXIS (OPT.) |
|
|
|
| Turret type |
|
BARUFFALDI-TBMA320 |
| Tool station |
|
12×VDI 60 |
| Max. tapping tool |
mm |
M24 |
| Y axis |
|
|
|
| Travel axis |
mm |
± 110 |
| TAILSTOCK |
|
|
|
| Quill travel |
|
MT＃6 |
| COOLANT SYSTEM 3 bars(opt.15bars) |
|
|
|
| Tank capacity |
liter |
350 |
| Pump motor |
hp |
0.25 |
| CONTROL |
|
|
|
| Control unit |
|
FANUC Oi-TD (OPT FANUC 18i-TB) |
