CNC-S30/S30L/S30LL/S30XL

Product Name : CNC-S30/S30L/S30LL/S30XL

ITEM/MODEL	S30/S30L/S30LL/S30XL
Swing over bed	Ø780mm
Max. turning diameter	Ø500mm
Distance between center	700mm/1200mm/1700mm/2200mm
Hydraulic chuck diameter	250 mm(10")
SPINDLE
Max. spindle speed	3200 r.p.m.
Spindle nose	A2-8
Spindle motor	15/18.5 kw
Through spindle hold diameter	Ø87mm
Bar capaity	Ø75mm
TURRET
Type of turret	Servo
Number of tool stations	10
Shank height for square tool	□32
X AXIS
Type	Box way
Travel	275+30
Z AXIS
Travel	850mm/1350mm/1850mm/2350mm
TAILSTOCK
Quill diameter	Ø110mm
Quill travel	100
Quill inside taper	M.T.# 5
C AXIS	POWER TURRET
Number of tool stations	VDI 40 12Stations
Y AXIS(Optional)
Travel	±55mm
Suitable Model	S30LCY/S30LLCY
HYDRAULIC SYSTEM
Tank capacity	60 liter
Hydraulic unit motor	1.46kw
COOLANT SYSTEM
Tank capacity	200 / 250 / 290
Coolant pump motor	1/4HP

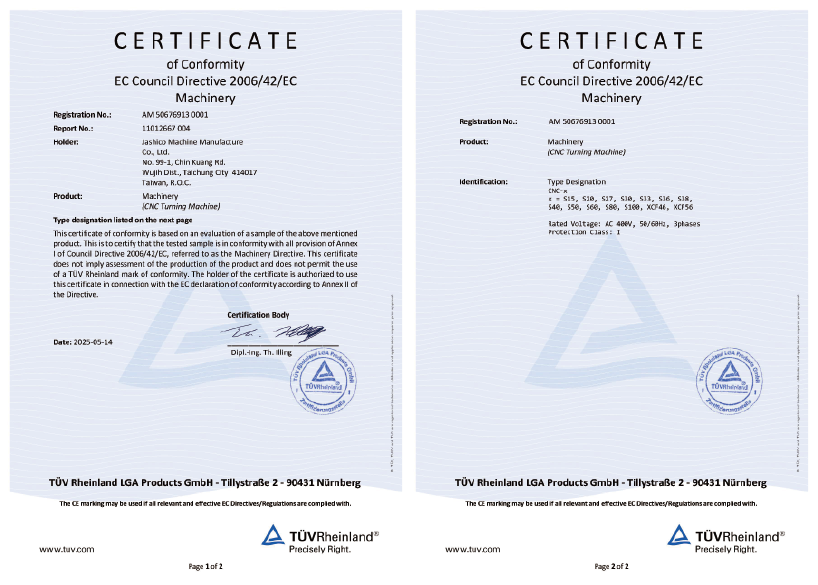

proimages/TUV-2.png
